Hager WTBB1279, 2 Ball Bearing, Steel, Heavy Weight, 5 Knuckle, Full Mortised, Wide Throw Hinge, All Sizes

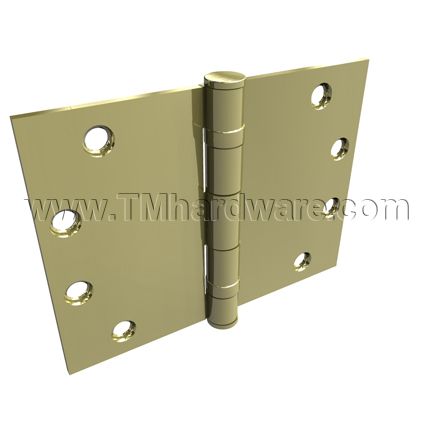

Hager WTBB1279 Full Mortised Architectural Wide Throw, Five Knuckle Hinge with Ball Bearings. Standard weight for use with medium weight doors or doors requiring medium frequency service. Base material made of steel with steel pin. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Hinge Size

Quantity

Add to compare

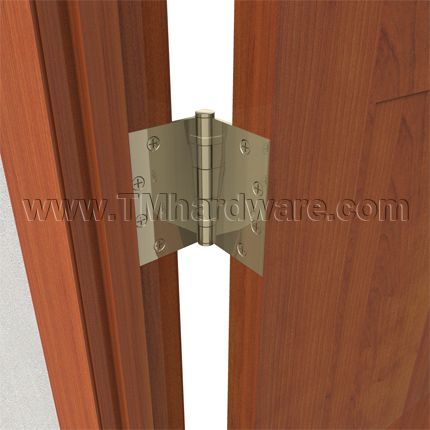

Hager WTBB1279 Full Mortised Architectural Wide Throw, Five Knuckle Hinge with Ball Bearings. Standard weight for use with medium weight doors or doors requiring medium frequency service. The barrel of the hinge is set out away from the door allowing the door to open 180 degrees. Ideal for application where additional clearance is required.

Available Sizes:

Hinge Size		Gauge of Metal	Hole Count	Screw Size
Inches	mm	Gauge of Metal	Hole Count	Machine	Wood
3-1/2" x 5"	89 x 127	0.119	6	1/2 x 10-24	1 x 9
3-1/2" x 6"	89 x 152	0.119	6	1/2 x 10-24	1 x 9
4" x 5"	102 x 127	0.129	8	1/2 x 12-24	1-1/4 x 12
4" x 6"	102 x 152	0.129	8	1/2 x 12-24	1-1/4 x 12
4" x 7"	102 x 178	0.129	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 5"	114 x 127	0.134	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 6"	114 x 152	0.134	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 7"	114 x 178	0.134	8	1/2 x 12-24	1-1/4 x 12
4-1/2" x 8"	114 x 203	0.134	8	1/2 x 12-24	1-1/4 x 12
5" x 6"	127 x 152	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 7"	127 x 178	0.145	8	1/2 x 12-24	1-1/4 x 12
5" x 8"	127 x 203	0.145	8	1/2 x 12-24	1-1/4 x 12

Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

Custom Finishes: For details and pricing please contact us or call us at 845-388-1300.

Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.

Additional Options - Can be purchased through our office

Non-removable pin (NRP). Pins which have a groove milled into them. A set screw is inserted through the middle knuckle into the groove. This way the pin, hinge and door cannot be removed.
Concealed Electric Modifications available: Three types available. EMN, ETW, ETM. See options tab for more details.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs Tab for exact measurements.

This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.

Additionally, click here to view our Hager WTBB1191 Five Knuckle, Ball Bearing, Standard Weight, Wide Throw Hinge Made of Brass or Stainless Steel.

- SKU
  HGWTBB1279-3.5x5-USP
QuickShip
No
Manufacturer
Hager Companies
MPN
WTBB1279
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Steel
- Usage Level
  Heavy Duty
- Throw
  Wide Throw
- Bearing Type
  Ball Bearing
- Knuckles
  5 Knuckle Hinge
- Pin Type
  Standard Hinge Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  8 Holes
Dimensions
- Hinge Size
  3-1/2" x 5", 3-1/2" x 6", 4" x 5", 4" x 6", 4" x 7", 4-1/2" x 5", 4-1/2" x 6", 4-1/2" x 7", 4-1/2" x 8", 5" x 6", 5" x 7", 5" x 8"
- Hinge Thickness
  See Dimensions Chart
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  Installation Screws Provided Accordingly:
  4-1/2" Hinge: All metal screws and half wood screws
  3-1/2" Hinge: All wood screws and half metal screws
  4" Hinge: All wood screws and half metal screws
  5" Hinge: All metal screws and half wood screws
  Additional screw packs can be provided if listed in order comments before completing purchase.
Additional Options - Purchase Through Our Office
- Electric Modifications
  Yes
Finishes
- Finish

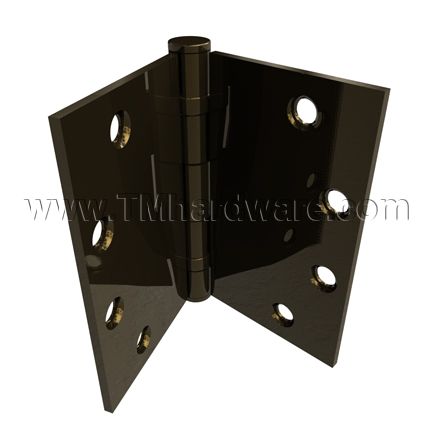

  Luma Sheen Aluminum, Painted, Prime Coat (USP), Polished Brass (US3), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  A8112, A156.18
- Warranty
  Lifetime Limited Warranty

Click to Print 3-1/2" Hinge Template

Click to Print 4" Hinge Template

Click to Print 4-1/2" Hinge Template

Click to Print 5" Hinge Template

3-1/2" Hinge Template. Select links above for additional sizes.

Hinge complies with ANSI A8112.

Electric Modifications

EMN-Electric Monitor Type:

Electric Monitor hinge has a miniature snap action incorporated into the frame leaf. It utilizes a switch to send a signal when the door is opened. This hinge is for electric monitor only.

28 gauge wire
Hinge pins are not removable
Monitoring capability only
Concealed subminiature snap action, SPDT switch
Adjustment feature for a wide range of switch sensitivity
Preset switching circuit
For open loop secure, closed loop secure or single pole double throw (SPDT)

Switch Maximum Electrical rating: 30 VDC @ .500 amps

ETW-Electric Thru-Wire Type:

Concealed electric thru-wire hinges are a means to transfer electrical power from the power source, (through the use of 4 continuous electric conductors) through the frame and into the door and finally to the electrified door hardware, such as power lock sets, exit devices and other door monitoring devices. This hinge is for electric thru-wire only.

28 guage wire
Hinge pins are not removable
Low voltage electric current transfer capability only
4, 6, 8, 10, 12 continuous electrical conductors

Electrical rating:

Wire Maximum Electrical Rating

Volts

Amperes

VDC

3.5 amps CONTINUOUS

16.0 amps PULSE

ETM-Electric Tru-Wire and Monitor Type:

These hinges can monitor door position while at the same time transfering power to electrified door hardware such as, power lock sets, exit devices and other door monitoring devices. It does this by combining the 4 continuous electric conductors and the miniature snap action switch to provide continuous circuit and monitoring capabilities.

28 gauge wire
Hinge pins are not removable
Both continuous electric conductors and monitoring capability
Concealed monitor switch and 4, 6, 8 or 10 continuous conductors
Adjustment feature for a wide range of switch sensitivity
For open loop secure, closed loop secure or single pole double throw (SPDT)

Electrical rating:

Contact Maximum Electrical Rating
Volts	Amperes
48 VDC	3.5 amps CONTINUOUS 16.0 amps PULSE
Switch Maximum Electrical Rating
30 VDC @ .500 amps

Important Points to know about Electric Hinges:

All of the Hager Companies electric hinges have been tested through UL in order that our products can be used on fire rated or labeled openings.
The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety.
The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.
Electric Hinges have a 1 year guarantee against defects in workmanship and materials.
