Hager 790-900 is a Heavy-Duty, Concealed Leaf Stainless Steel Continuous Hinge which is mortised to the frame rabbet and edge of the door.  Designed for doors 1 3/4" thick and up to 600 pounds.  Compatible with doors of any material and is available in a choice of lengths and finishes. See below for details.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HG790-900_027336_QS
      • 42% off
      Market price: $628.38 save $260.78
    • Starting price: Price: $367.60 per item

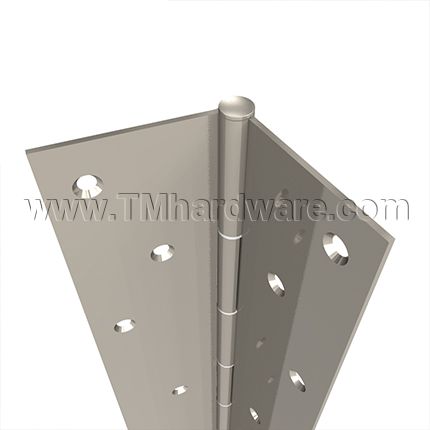

    Hager 790-900 continuous barrel type, stainless steel concealed leaf hinge for 1 3/4" doors by Hager companies.

    • Available in five sizes: (chart) For 119" Length, please contact us or call 845-388-1200 as Freight Shipping Charges may apply.

    Hager 790-900 Continuous Hinge Product Options

    • Security and Privacy:  Eliminates the gap between the frame and door so doors cannot be pried open, offers privacy on hospital and toilet partitions.
    • Finish: Stainless steel continuous hinges are brushed to a satin finish (US32D).  For custom color painted or powder coated finishes please contact our office at 845-388-1200 or contact us(Color samples are required for matching.)
    • Materials:  Constructed from 14 Gauge Type 304 Stainless Steel with lubricated nylon 6/6 bearings between each knuckle and stainless steel pin.  1/4" diameter Stainless Steel Pin.
    • Features:  Heavy-duty construction to support doors up to 600 pounds.  Energy saving, creates a seal from the top to bottom of the door to prevent air infiltration and permanent weather barrier.

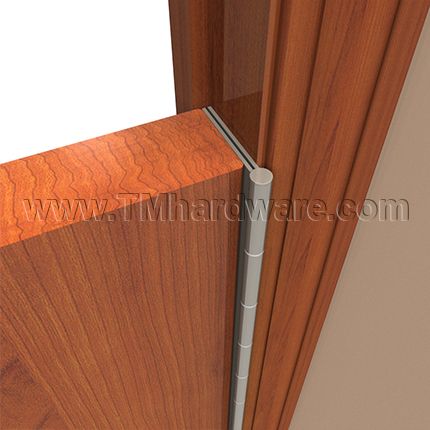

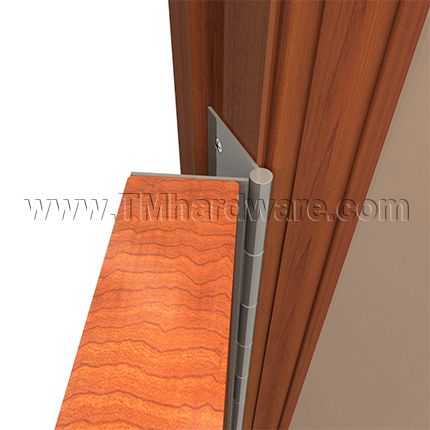

    • Design:  Concealed leaf edge mount hinge for 1 3/4" thick doors.  Provides 1/8" door inset (see Product Data Tab.)
    • Fasteners: #10-24 X 5.8" S.S Dril-Kwik (R) (metal frame)
                         #10-16 X 1 1/4" S/S Type AB (wood door)
    • Applications:  For all door types, may be used with beveled (non-hinge side) or square edge (hinge side) doors.  Corrosion resistant for swimming pool buildings, sewage, water treatment plants and salt spray environment.  Ideal for applications where doors and frames are subjected to severe abuse such as hospitals and institutions.
    • Clearance:  Minimum clearance between the hinge edge of the door and the frame is 7/32" plus standard lockside clearance.
    • Reinforcement:  No door reinforcement necessary.  No frame reinforcement necessary for loads up to 200 lbs.  For heavier weight use 16 gauge channel.
    • Fire-Rating:  Up to 3 hour metal and 90 min. wood composite (with studs).
    • Certification:   ANSI A8134 Grade 1 for 150 pound doors.
    • Electric Modification:  Exposed Electric Switches (E1S), Power Transfer Preparation (EPT 2) or (EPT 10) and  Electric Through Wire (ETW) are available through our office, for details and pricing please contact us or call us at 845-388-1300.
    • Additional Options:  Including security studs, specialty fasteners, hospital tip and customize hole patterns may be ordered, for details and pricing please contact us or call our office at 845-388-1300.
    • Installation:  Can be used with any standard frame without hinge preps.  Installed either with or without reinforcements depending on door weight.  Installation screws are provided (see Installation Tab.)
    • Priced per piece
    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click here to view our Hager 790-903 Continuous Hinge, Half Surface Stainless Steel.

    This product has a lifetime warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        HG790-900_027336_QS
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      H790-900
    5.0
    1 Review

    Ratings Distribution

    5 Stars 100 1
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Reviewed by 1 customer

    5

    good stuff — thank you

    Comments about Hager 790-900 Continuous Hinge, Concealed Leaf Stainless Steel

    good stuff — thank you

    By dg
    Verified Buyer

    Printable Documents:

    Click to print Hager 790-900  Continuous Hinge 79" Template.

    Click to print Hager 790-900 Continuous Hinge 83" Template.

    Click to print Hager 790-900 Continuous Hinge 85" Template.

    Click to print Hager 790-900 Continuous Hinge 95" Template.

    Click to print Hager Continuous Hinge Electric Modification Information.

    Click to print Hager 790-900  Continuous Hinge 119" Template.

    Product Specs:

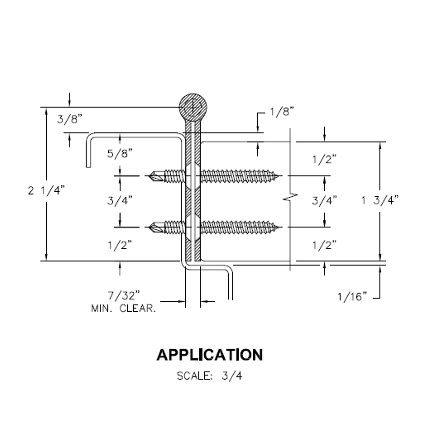

    Hager 790-900 Continuous Hinge Product Specs

    Standard Locations for Electrical Modification:
    Standard Location for Electrical Modification



    Click to print Installation Instructions for Hager Models 790-900, 790-911 and 790-915.

    Click to print Installation Instructions for Hager Continuous Hinge Electric Through Wire Installation.
    Hager Models 790-900, 790-911 and 790-915 are Stainless Steel Continuous Edge Mount Hinges for 1 3/4" thick doors.  Clearance required between the hinge edge of the door and the frame rabbet is 7/32" minimum.  Model 790-911 provides 'swing clear' rotation.  Models 790-911 and 790-915 feature an integral protective corner guard and are not recommended for use on doors that have a beveled edge on the hinge side.

    Hinge Length:
    All Hager Stainless Steel Continuous Hinges are supplied 7/8" to 1" shorter than the nominal door height to avoid threshold or carpet clearance problems.  If the hinge must be trimmed shorter, first determine the correct hand of the door and orientation of the hinge.  Remove the bottom pin cap and trim from the bottom end of the hinge only to achieve the desired length- do not cut the top end.  Undercut the pin 7/8" shorter for clearance and reinsert the bottom pin cap.

    General Fitting Procedure:
    •  For new construction with metal doors/frames: To accommodate the 7//32" hinge clearance required for Hager models 790-900, 790-911 and 790-915, the hinge edge of the door should not be beveled.  Mortar guards, either styrofoam or wood, are recommended for frames to prevent grout from interfering with the installation of the hinge fasteners.
    • For new site-hung wood doors:  If necessary, scribe and cut from the latch edge of the door to leave sufficient hinge stile thickness for proper fastening.   minimum clearance of 7/32" is required between the hinge edge of the door and the frame rabbet.  Do not bevel the hinge edge of the door.  See the clearance information above to attain the proper finished width of the door.
    • For remodeling with existing wood or laminate doors:  If necessary, scribe and cut from the hinge edge of the door and plane smooth.  A minimum clearance of 7/32" is required between the hinge edge of the door and the frame rabbet.  Do not bevel the hinge edge of the door.  See the clearance information above to attain the proper finished width of the door.

    Frame Preparation:

    1.  With the hinge open, place the hinge frame leaf against the frame rabbet.  Position the top of the hinge 1/8" below the header.  Allow 1/16" minimum between the frame stop and the edge of the hinge.

    2.  Mark and center punch the screw hole locations.  Accurate location is important for proper installation.

    3.  For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes if using the self-drilling screws provided
         For metal frames 12 gauge and over, drill and tap all mounting holes for #10-24 threads prior to installing the screws.
         For wood frames, pre-drill pilot holes using a #25 bit.

    4.  Do not attach the hinge to the frame at this time.

    Door Preparation:

    1.  With the hinge open, place the hinge door leaf against the edge of the door.  Position the top of the hinge flush with the top of the door.  For model 790-900, position the edge of the hinge leaf flush with the 'push' face of the door.  For Models 790-911 and 790-915, position the integral corner guard fully against the 'push' face of the door.

    2.  Mark and center punch the screw hole locations.  Accurate location is important for proper hinge installation.

    3.  For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes if using the self-drilling screws provided.
         For metal frames 12 gauge and over, drill and tap all mounting holes for #10-24 threads prior to installing the screws.
         For wood frames, pre-drill pilot holes using a #25 bit.

    4.  Attach the hinge to the door.  For metal doors, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM).  For wood doors, use the #10 wood screws provided.

    Hanging the Door:

    1.  Position the door (with hinge attached) at 90 degrees to the frame.  Attach the hinge to the frame rabbet.  For metal frames, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM).  For wood frames, use optional #10 wood screws.

    2.  Make a gentle trial swing.  Carefully check for proper swing and door clearance.

    Adjusting the Door:

    1.  If lateral adjustment of the door is required due to excessive or uneven door/frame clearance, adjust by shimming where needed:

    a.  For minor adjustments, an effective shimming material is 1 1/2" cloth duct tape.  Apply the tape in stepped layers underneath the frame leaf where needed to build up to the desired thickness.

    b.  To shift the entire door, a thin continuous aluminum strip may be used underneath the frame leaf (available in 1/16" and 1/8" thicknesses from our manufacturer.

    2.  Retighten all  screws.  Make a gentle trial swing.  Carefully check for proper swing and door clearances.
