Zero #72A Garage & Overhead Door Seal, Aluminum Track with 1.063" Neoprene

This Zero #72A is designed to be applied as a garage door seal, Can also be used as a door bottom. It is comprised of an aluminum track with a solid neoprene insert which can fill gaps up to 1.063 inches. It is smoke rated, too.

Choose your custom size from the drop down menu.

SOLD BY THE FOOT.

See tabs below for additional information

Length

Quantity

Add to compare

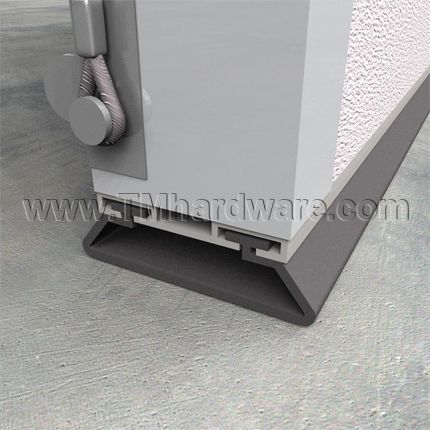

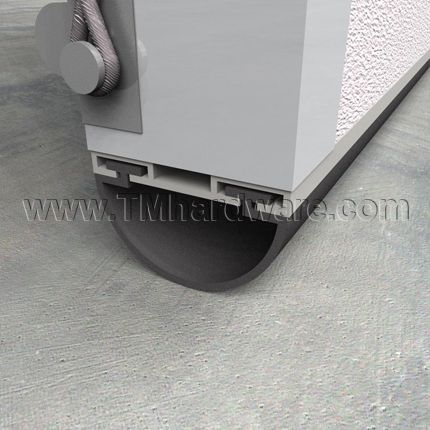

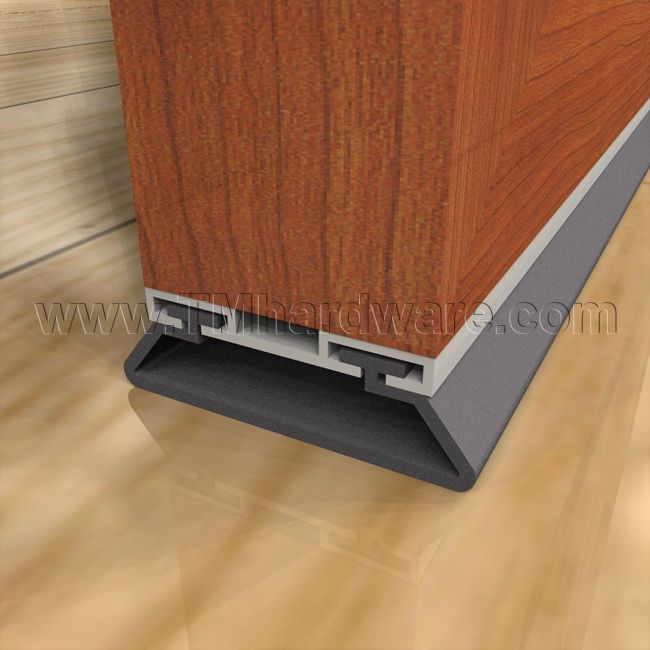

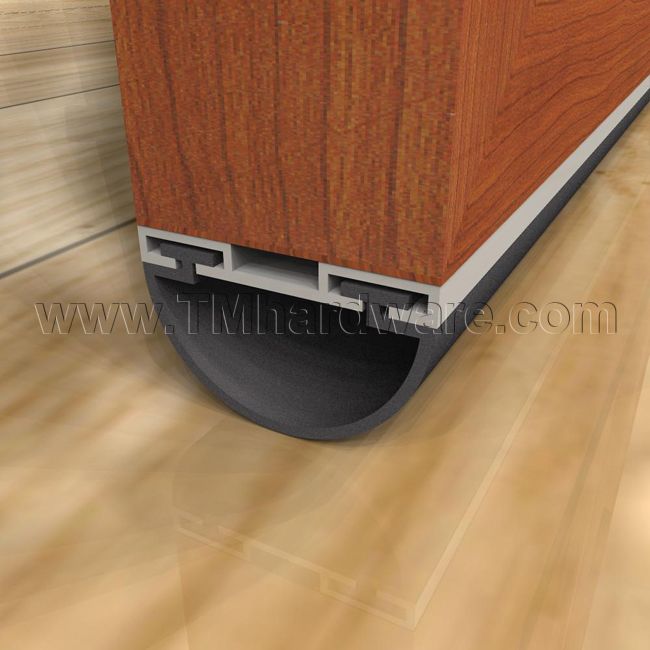

This smoke rated door sweep can be applied to an overhead door, ideal for garages, to create a seal against drafts, dust, moisture and the likes. It is comprised of a 1.75" wide aluminum track which is surface mounted to the underside of the door, eliminating the need for unsightly mounting screws.

The track is fitted with a solid neoprene insert which compresses against the floor surface to ensure a reliable seal. It can fill gaps up to 1.063 inches and can be used directly on the floor surface or against a saddle. It is built from high quality material that is sure to last through constant usages. This product can also be applied as a finger protection between two meeting doors (see our Meeting Stile, Finger Protection Track with Neoprene).

Click here for the neoprene insert replacement, Overhead Door Seal Replacement.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy

Click here to return to our Door Bottom/Sweep category page.

- SKU
  ZR72A_DB
QuickShip
No
Manufacturer
Zero International
MPN
72 DB
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Underside Mount

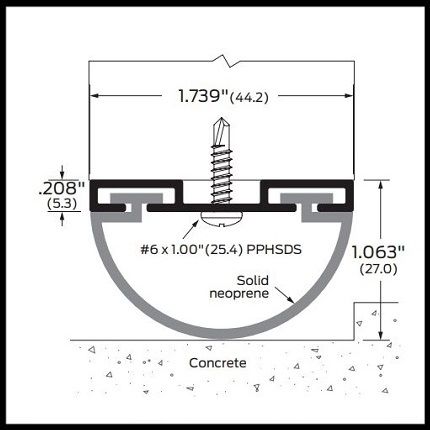

Dimensions
- Seal Height
  1.063"
- Total Height
  1.271"
- Additional Dimensions
  Door seal is 1.739" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Additional Options - Purchase Through Our Office
- Compatible Insert Replacement
  Zero #72N Neoprene Replacement
Finishes
- Finish
  Clear Anodized Aluminum (US28)
Compliance Details
- Compliance Details
  Smoke Rated, BHMA Certified
- ANSI Designation
  R3B414

Click to Print

product specs for z72

compliance details

SHIPPING / PROCESSING TIME:

This product ships directly from the manufacturer.

This product ships directly from the manufacturer.

Please allow 2 - 3 weeks to ship

Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $300.00.
- Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
- Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
- Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
- Orders totals above $2,000.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
- CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
- Weatherstripping products will not be considered for returns.
- Item must be in new, re-saleable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.

5.0

1 Review

Ratings Distribution

5 Stars 100 1

4 Stars 0 0

3 Stars 0 0

2 Stars 0 0

1 Star 0 0

Reviewed by 1 customer

What you expect. Decent Product.

Comments about Zero #72A Garage & Overhead Door Seal, Aluminum Track with 1.063" Neoprene

Pretty much exactly what you expect. Just keep in mind that neoprene will shrink/expand with temperature (like just about anything I guess). Unless the product is unnaturally cold upon install, you may find some shrinkage later leading to gaps in your corners if you cut them exactly with no overlaps. Be sure you're ready for this. I will probably buy this product again and attempt to see if throwing it in the freezer before cutting to length helps us. Could make slipping it on difficult... My application was more akin to an astragal, so for regular garage doors/overhead doors, you really shouldn't have a problem with ensuring a full seal as you should have plenty of space for shrinkage which for any normal overhead door should be the case. A dab of grease helps for sliding it on as well.

By Eaman

Verified Buyer
