Pemko #293100 Door Sweep, .875" Aluminum with Snap-On Cover and 1" Nylon Brush

This door bottom sweep is encased in an aluminum casing with a snap-on cover. It has a 1" nylon brush seal which creates a barrier for dust, light, smoke and insects. Available in options of aluminum anodized finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

Door sweeps are applied to doors to seal the gap between the door bottom and the floor surface beneath it. Great for residential homes and offices, this creates a barrier for light, sound, dust, fire, smoke and insects and is a simple way to significantly lower energy consumption.

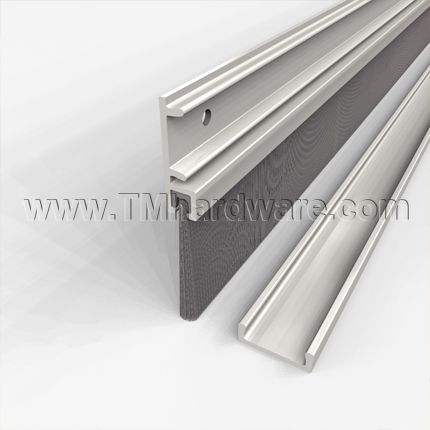

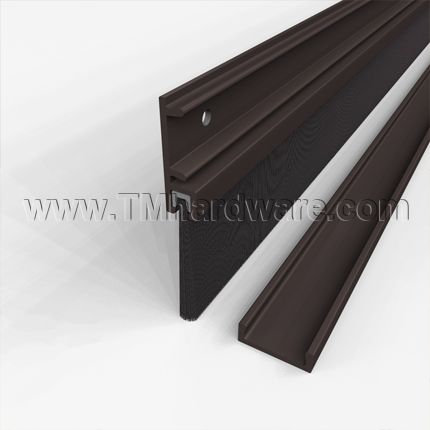

This door bottom comes with a snap-on cover which eliminates exposed mounting screws and creates an aesthetically appealing appearance. The cover snaps securely into place, making it tamper-proof and deters vandalism. Its sleek aluminum casing is .25" wide making for a neat and tidy appearance. It has a full height of 1.875" and is surface mounted to the bottom of the doors and punched with elongated mounting holes for easy installation and adjustment.

The sweep consists of a 1" dense type 6 nylon bristles, making it an ideal product to seal almost all door openings while using minimal closing force .The high quality bristles remain flexible in extreme temperatures and can be used on an exterior door. It conforms well to surface irregularities too.

Installation instructions and screws provided.

Please note, clear anodized door bottom is supplied with grey brush and dark bronze and gold anodized is supplied with a black brush. A black brush can be requested for both. Contact us or call us at 845-388-1300 to place request.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

For more door sweeps, see our Pemko #90100 Aluminum door bottom sweep

- SKU
  PK293100CNB
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
293100
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted

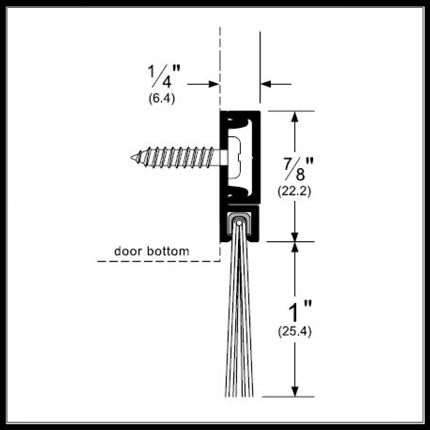

Dimensions
- Seal Height
  1" Height
- Total Height
  1-7/8" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Satin Bronze Powder Coated (10BE)
Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified, GreenGuard Gold Certified
- ANSI Designation
  R3A434
- Warranty
  5 Year Limited Warranty

Click to Print

P293100 Product Specs:

Click to Print

P293100 Installation Guide:

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
