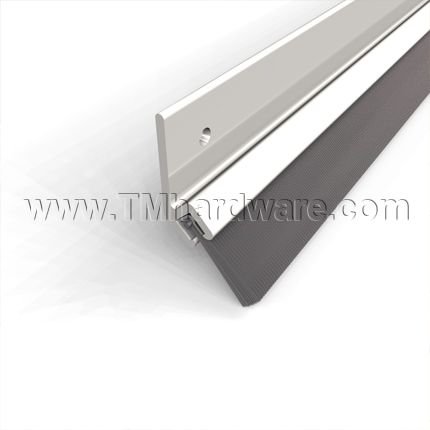

Pemko #45041 Door Gasket and Sweep, Aluminum with .375" Angled Brush

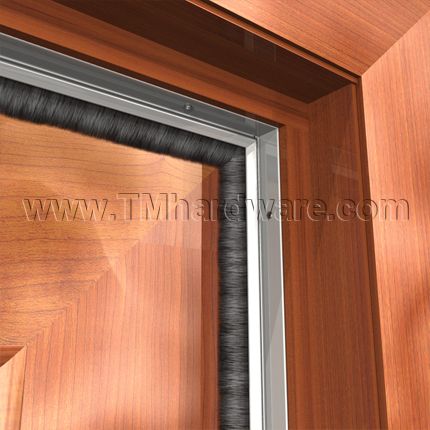

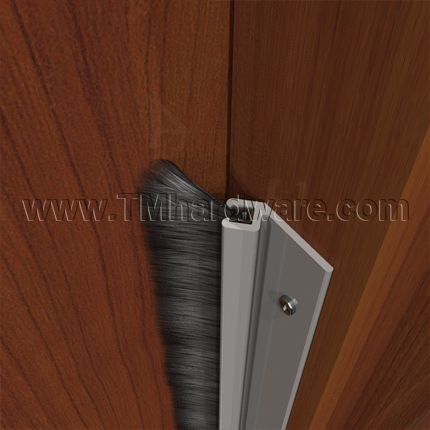

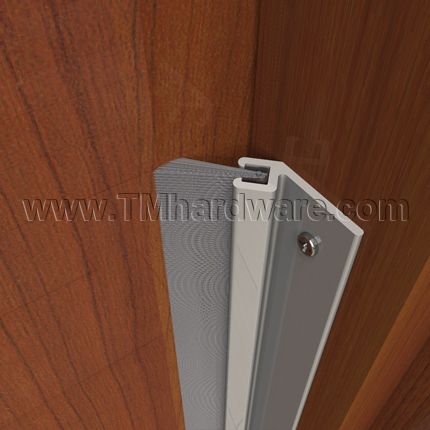

This Door Gasket and Sweep is supplied with an 45º angled flange which provides the best contact between the seal and the floor surface or door jamb. It can seal up to .25” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in various aluminum finishes, with two brush insert options, and is custom cut to size.

Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #45041 Door Gasket and Sweep, Aluminum with .375" Angled Brush, Clear Anodized Aluminum Finish - QuickShip

SOLD BY THE FOOT.

See tabs below for additional information

Finish
Seal Type
Size

Quantity

Add to compare

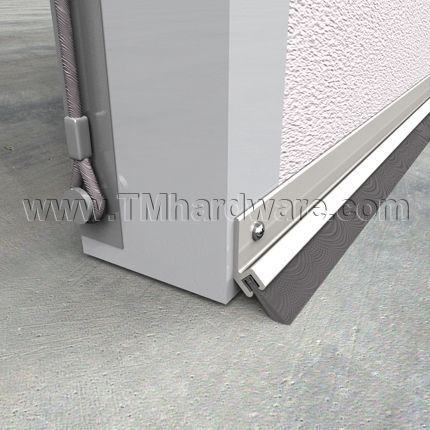

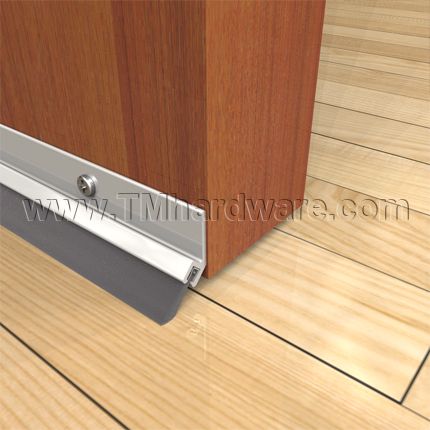

This multi-purpose fire and smoke rated door sweep can be applied to both wood and metal doors. It can be used on overhead garage doors, sectional, sliding and automatic doors.

The door sweep is supplied with a 45º angled flange which provides ideal contact between the seal and the floor surface beneath it. It is fitted with a row of .375" high quality bristles which can seal up to .25” gaps. They conform well to the contours of many sealing surfaces, which provides a superior seal with extremely low closing force. The brush insert remains flexible in weathers down to -40ºF and over 400ºF. The casing is punched with elongated slots which allow for easy adjustment once installed.

Nylon Brush consist of densely compressed nylon bristles for a superior seal.

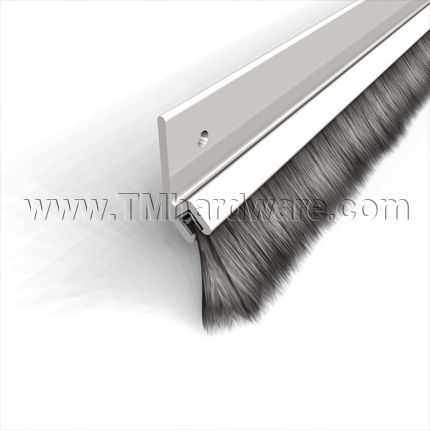

Soft Brush is made of very flexible, soft fibers, made for applications above delicate surfaces.

Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing.

Brush Inserts: Clear Anodized is supplied with a grey insert and all other finishes is supplied with a black insert. Other combinations can be requested. Contact us or call us at 845-388-1300 to place a request.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a larger brush size, see our .625” Angled Brush Door Bottom Sweep.

- SKU
  PK45041CNB
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
45041NB, 45041SB
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -40ºF to 400ºF
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal, Soft Brush Seal
- Mounting
  Surface Mounted

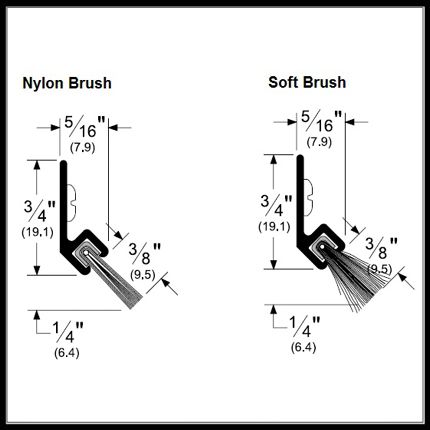

Dimensions
- Seal Height
  3/8" Height
- Total Height
  1" Height
- Additional Dimensions
  Door seal is 5/16" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, BHMA Certified, UL Classified
- ANSI Designation
  R3A164
- Warranty
  5 Year Limited Warranty

Click to Print

DOOR BOTTOM:

Click to View Ratings Explained

Please note, these ratings apply to nylon brush version only, and when product is used as a door gasket

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
