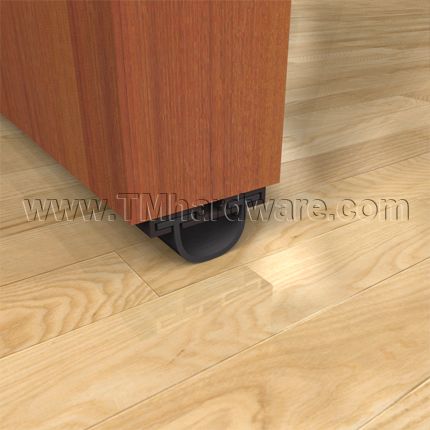

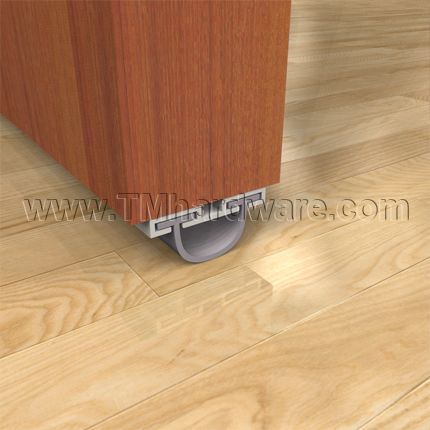

Pemko #314 Door Sweep, Aluminum Track with EPDM Bulb Seal, .75” Clearance

Keep out unwanted elements and save money on utility bills by sealing beneath-the-door gaps with this Door Bottom Sweep. It is mounted to the underside of the door and effectively inhibits the passage of dirt, drafts, insects, light , and sound under the door. Comprised of an aluminum track and an EPDM Bulb seal, and is available in various anodized aluminum finishes. Custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

Close the gap between your door and threshold with a door sweep to effectively prevent infiltration of drafts, moisture, dust, insects, and light. Door seals greatly improve energy efficiency and can save you money on utility bills.

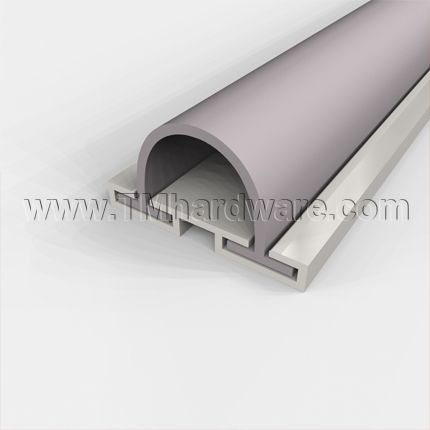

Seal: This Door Bottom is fitted with an EPDM Bulb Seal. EPDM is comparable to Neoprene Rubber but is more environmentally friendly and has overall better performance than neoprene. EPDM has great soundproofing properties and is resistant to solvents. The seal has great compression properties, is very flexible in all weather conditions and conforms to surface irregularities.

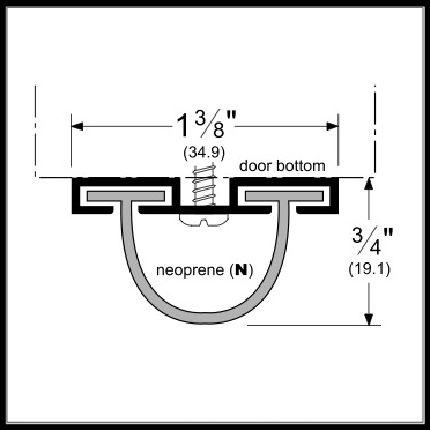

Dimensions: Casing measures 1.375” wide and the seal fills gaps of up to .75”. Seal can compress to close smaller gaps as well. See product specs.

A note on Finishes: Anodizing is an electrolytic process that applies a corrosion and wear resistant coating to the aluminum for longer wear and color maintenance. Anodized aluminum has a durable surface that will not peel, chip or flake and has easy maintenance.

Installation: Door must be removed to install this door bottom sweep.

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

This product can also be applied as a Meeting Stile, see our Meeting Stile, 1.375" Aluminum Track with EPDM Bulb Seal, .75" Clearance

- SKU
  PK314CN_DB
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
314DB
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Underside Mount
Dimensions
- Seal Height
  3/4" Height
- Additional Dimensions
  Door seal is 1-3/8" thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  Screws are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  GreenGuard Gold Certified, BHMA Certified
- ANSI Designation
  R3G416
- Warranty
  5 Year Limited Warranty

Click to Print

P314DB Product Specs:

Click to Print

P314DB Installation Guide:

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688

SHIPPING / PROCESSING TIME:

This product ships directly from the manufacturer.

Please allow 2 - 3 weeks to ship

Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $300.00.
- Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
- Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
- Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
- Orders totals above $2,000.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
- CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
- Weatherstripping products will not be considered for returns.
- Item must be in new, re-saleable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
