Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop

Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop
  • Best Seller
Zero International
Read 1 review

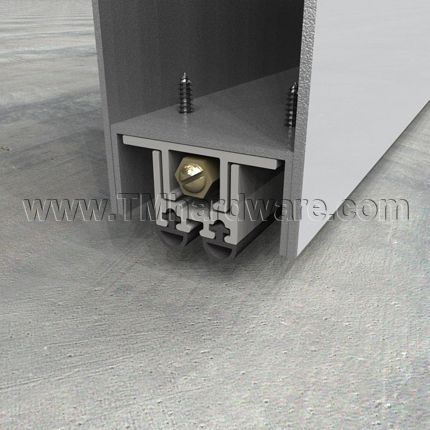

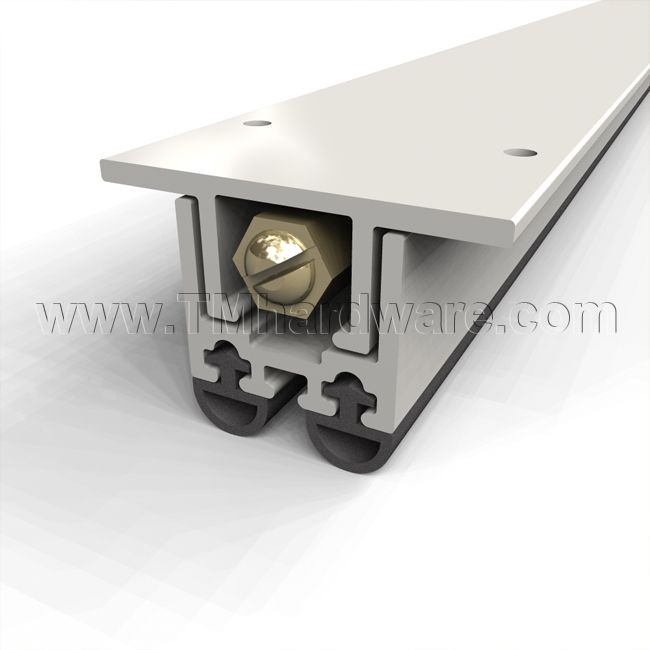

This Zero International #355,  automatic door bottom is designed to be fully mortised into hollow metal doors. It is crafted from high quality material that will ensure smooth operation. It is fitted with a two neoprene bulbs to ensure a quality seal. Seal drops up to .5" and is fire rated. Product is non-handed and custom cut to size.

How to Order: Selecting Seal Type and Size required will determine your total price. To determine size required see How to Measure for an Automatic Door Bottom. Can be cut up to 2" in the field.

See tabs below for additional information
    • SKU
      ZR355A|36
      • 19% off
      Market price: $94.86 save $18.03
    • Starting price: Price: $76.83 per item


    The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors retain their clean, unobtrusive look.

    It is specifically designed for hollow metal doors with minimum 1.5" wide cavity.

    Installation: Installation instructions and screws provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a handed version, see our Zero #354 Mortised Automatic Door Bottom.

      • SKU
        ZR355A|36
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      355
    • Product Design
      • Mounting Type
        Fully Mortised
      • Door Type
        Hollow Metal Door
    • Dimensions
      • Casing Dimensions

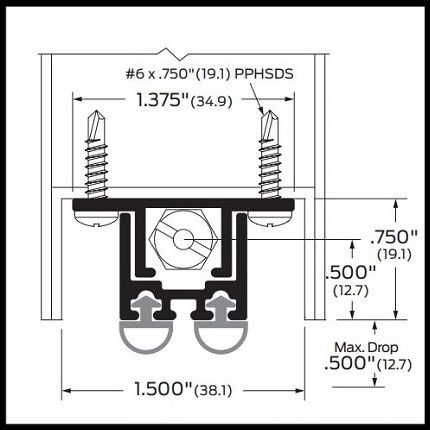

        1.375" W x .875" H x Custom Cut Length up to 54".
      • Length
        Custom Cut to Size
      • Drop Size
        Up to .5" Drop
      • Suggested Door Cut-Out
        Designed for hollow metal doors with minimum 1.5" wide cavity.
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Special Features
      • Add FLO (Notched) Seal
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, Sound Rated
      • ANSI Designation
        R3E3241

    compliance for z355

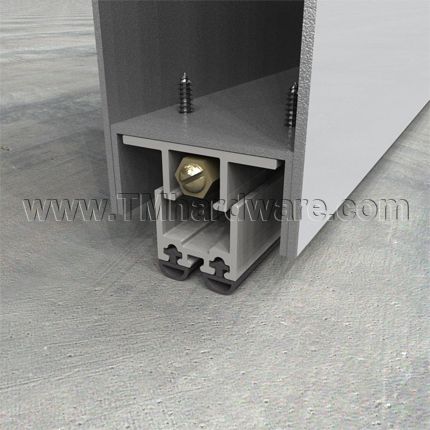

    How it Works: Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

    See also About Automatic Door Bottoms.


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
    5.0
    1 Review
    100% would recommend this to a friend

    Ratings Distribution

    5 Stars 100 1
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Pros

    • 1 Good Design

    Reviewed by 1 customer

    5

    Looks like it will work out just fine

    Comments about Zero #355, Automatic Door Bottom, Mortised for Metal Door with Double Neoprene Seal, .5" Drop

    After installing the door bottom it looks like it will work even without needing to adjust it. However, I did have to make modifications in the channel of my old door in order to get the new piece to fit correctly. This was not the "fault" of the new door bottom, but in the design of the old door.

    By None
    Verified Buyer
